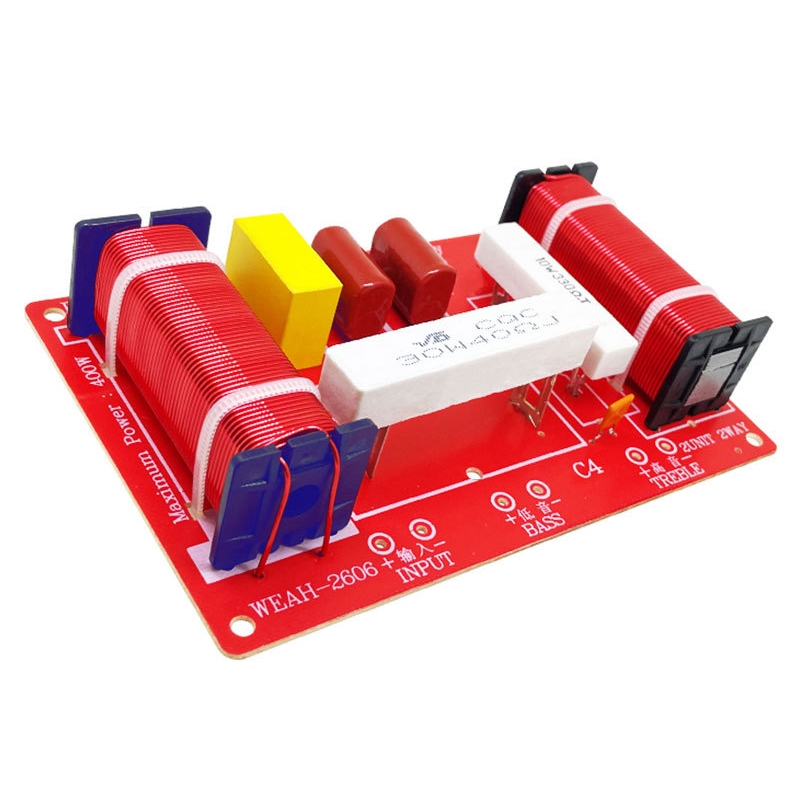

WEAH-2606 High And Low 2-Way Audio Crossover Hi-Fi Speaker Conversion Divider

Product Description

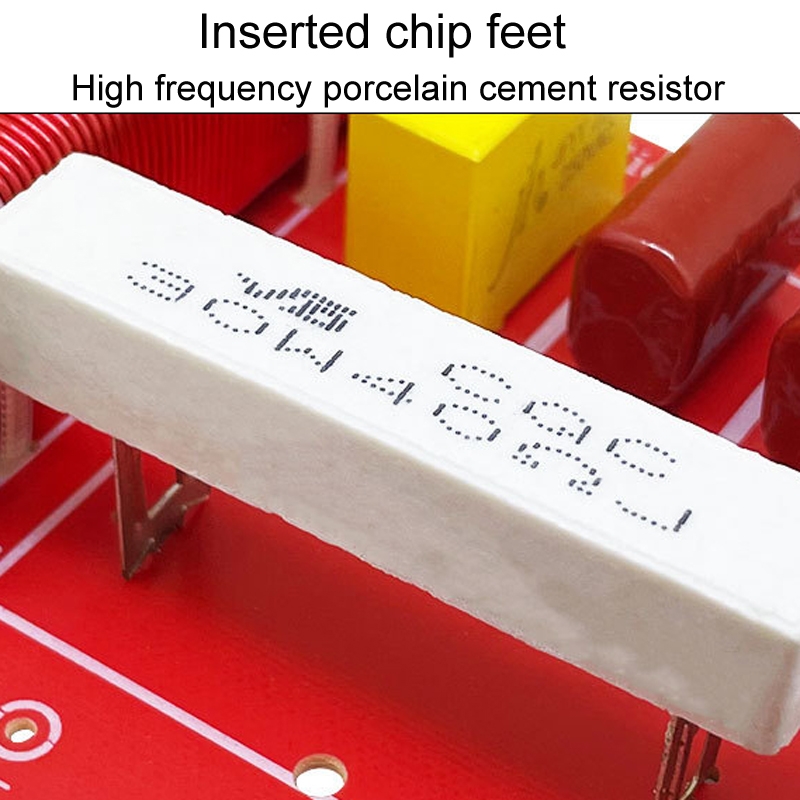

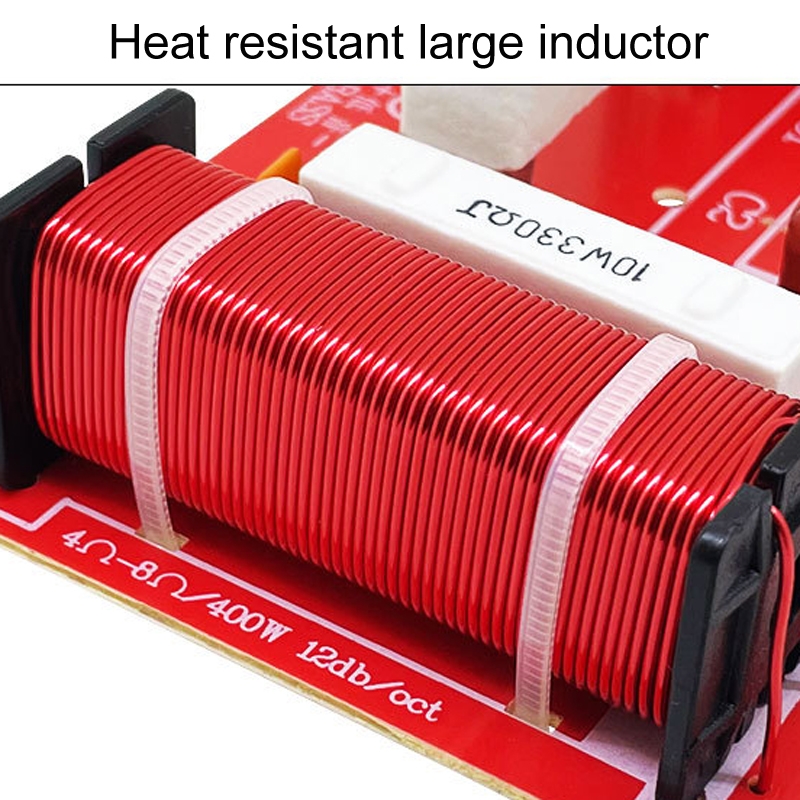

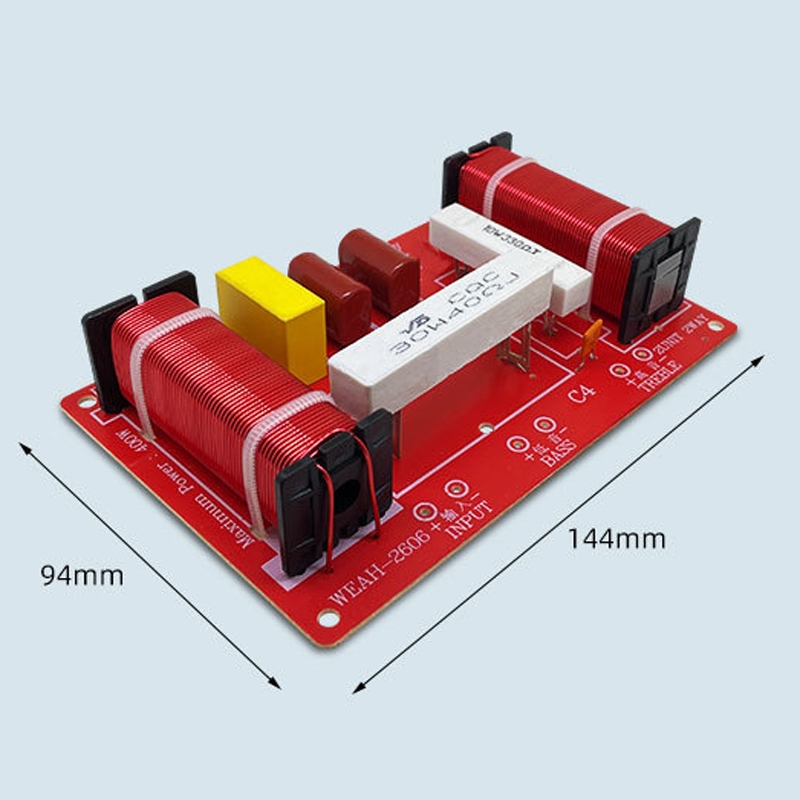

1. Application: stage speaker modification and upgrading 2. Filter characteristics: 1 high, 1 low 3. Crossover point: 3200Hz 4. Power: 400W 5. Impedance: 4-8 ohms 6. 1.0mm wire diameter and 66mm length high-temperature inductor for treble and 1.0mm wire diameter and 66mm length air core inductor for bass, good heat dissipation 7. High-frequency ceramic cement resistors with high heat, humidity and corrosion-resistant chip feet 8. Size: 144 x 94mm 9. Weight: 236g

Specifications

SKU

TBD06051757

Category

Consumer Electronics › DIY Parts & Components › Audio Crossover

Weight

0.254 kg

Delivery

Standard delivery
