YAHBOOM 9-axis IMU Sensor Module AHRS Support ROS1 ROS2 for Jetson Raspberry Pi

Product Description

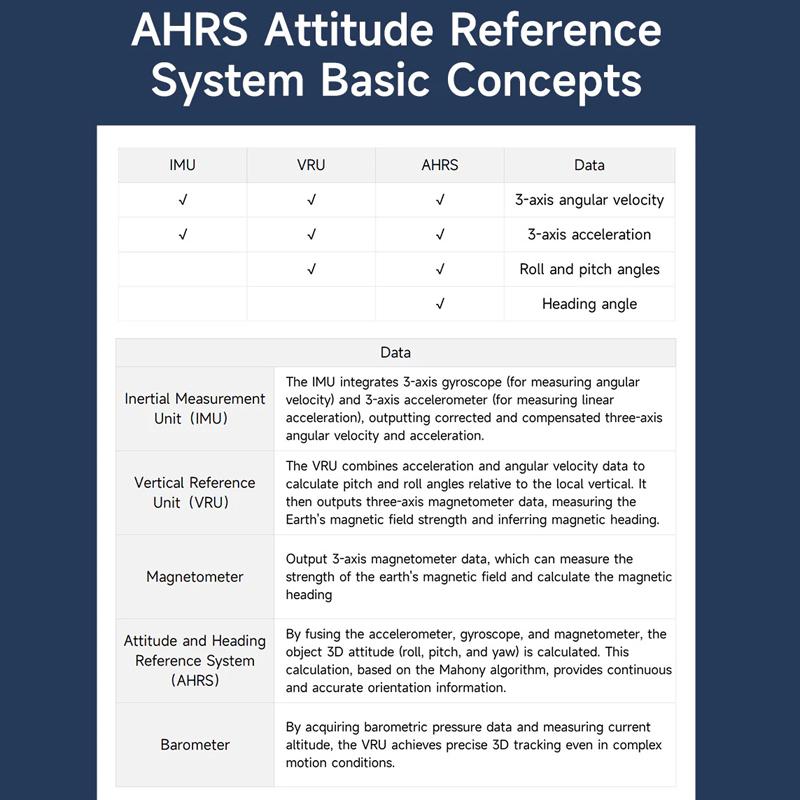

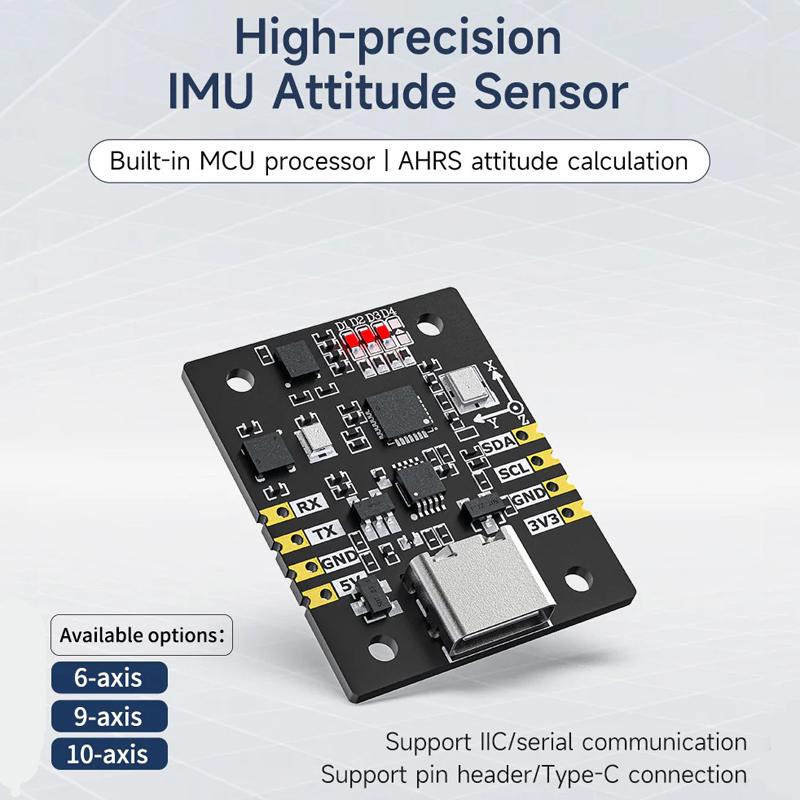

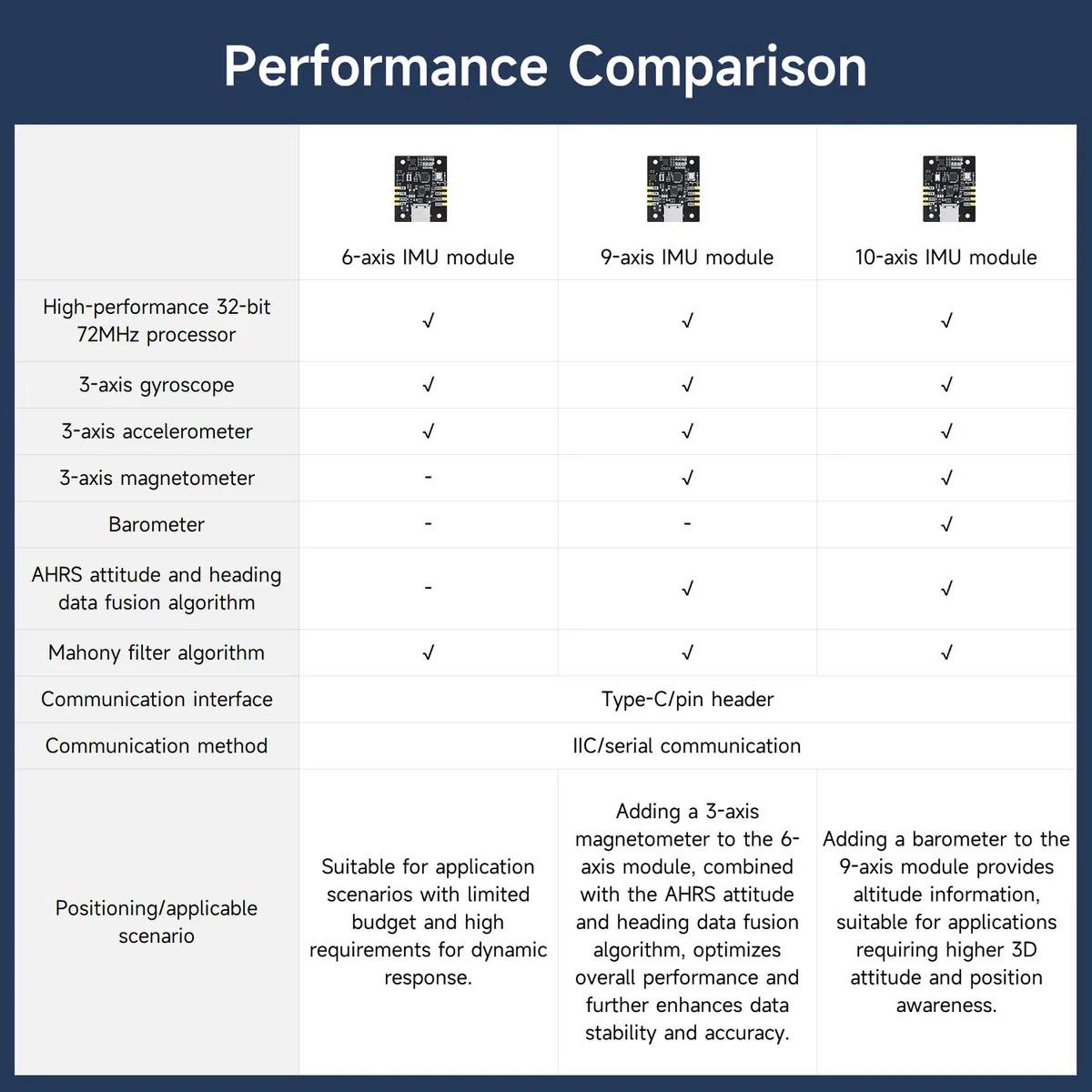

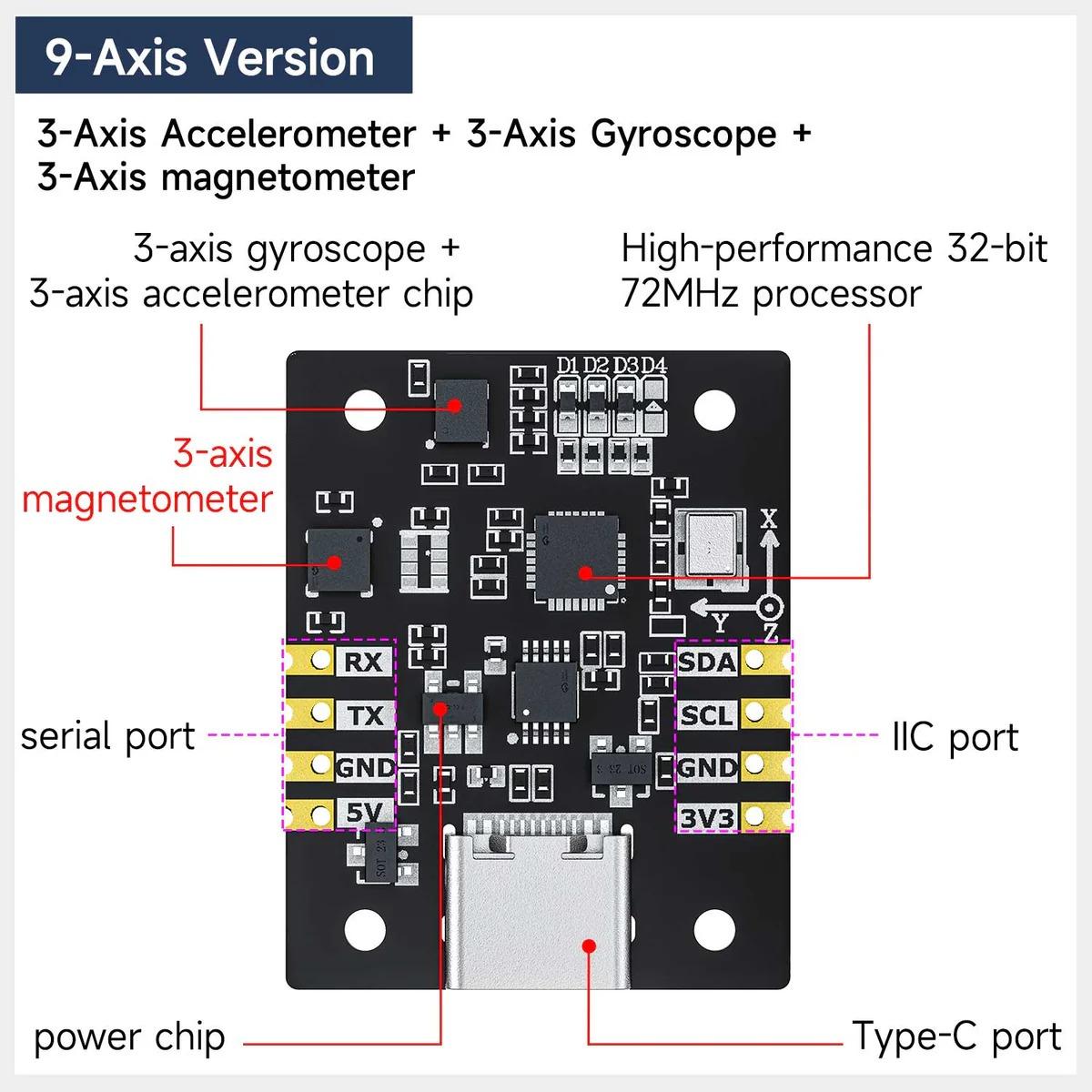

1. Yahboom IMU sensor module integrates multi-axis MEMS sensors and serves as a core component for motion tracking and posture measurement. The module features a high-performance 32-bit 72MHz processor, supporting real-time attitude resolution and dynamic compensation. It deeply fuses data from gyroscopes, accelerometers, and magnetometers to output precise attitude angles (roll, pitch, and yaw) and triaxial acceleration information. Whether performing 6-axis dynamic initialization or integrating magnetometers and barometers for 9-axis or 10-axis omnidirectional perception, this module delivers stable, reliable, and high-precision motion data solutions for DIY robotics, drones, smart agriculture, and navigation applications. 2. 6-axis: Integrates a 3-axis gyroscope and 3-axis accelerometer, enabling accurate measurement of angular velocity and linear acceleration for a cost-effective solution. 3. 9-axis: Adds a 3-axis magnetometer to the 6-axis module, enabling absolute heading (yaw angle) measurement and effectively eliminating long-term drift. 4. 10-axis: Incorporates a high-precision barometer into the 9-axis setup, enabling altitude measurement—ideal for applications requiring high-precision 3D attitude and position perception. 5. Advanced algorithms ensure stable and reliable posture: Built-in professional sensor fusion algorithms directly output gyroscope, acceleration, Euler angle, and quaternion data, significantly reducing the computational load on the main MCU. 6. Supports IIC/serial communication with exceptional compatibility: The Yahboom IMU module supports Type-C interfaces and pin headers. It is compatible with both IIC and UART communication protocols and features wide-range 3.3V/5V input voltage compatibility. It can connect to PCs for debugging or seamlessly interface with mainstream development platforms like Arduino, Raspberry Pi, STM32, ESP32, Jetson, RDK, and MSPM0. Parameters: 1. Serial baud rate: 115200bps 2. Serial output frequency: Default 25Hz, adjustable from 10Hz to 100Hz 3. IIC clock rate: 100KHz 4. Startup time: 5000ms 5. Operating temperature: -40 to +85 degrees Celsius 6. Storage temperature: -40 to +100 degrees Celsius 7. Impact resistance: 20kg (bare board) 8. Supported devices: Linux-based controllers (PCs, Raspberry Pi, Jetson series, RDK series, etc.); microcontroller-based controllers (STM32, MSPM0, ESP32, Pico, Arduino, etc.) 9. Operating voltage: 5V or 3.3V 10. Operating current: 11mA 11. Product dimensions: 24.5mm x 31mm 12. Product weight: 3.9g 13. ROS support: ROS1/ROS2

Specifications

SKU

TBD0606703102

Category

Consumer Electronics › Electronics Module › Robotics Accessories

Weight

0.084 kg

Delivery

Standard delivery
