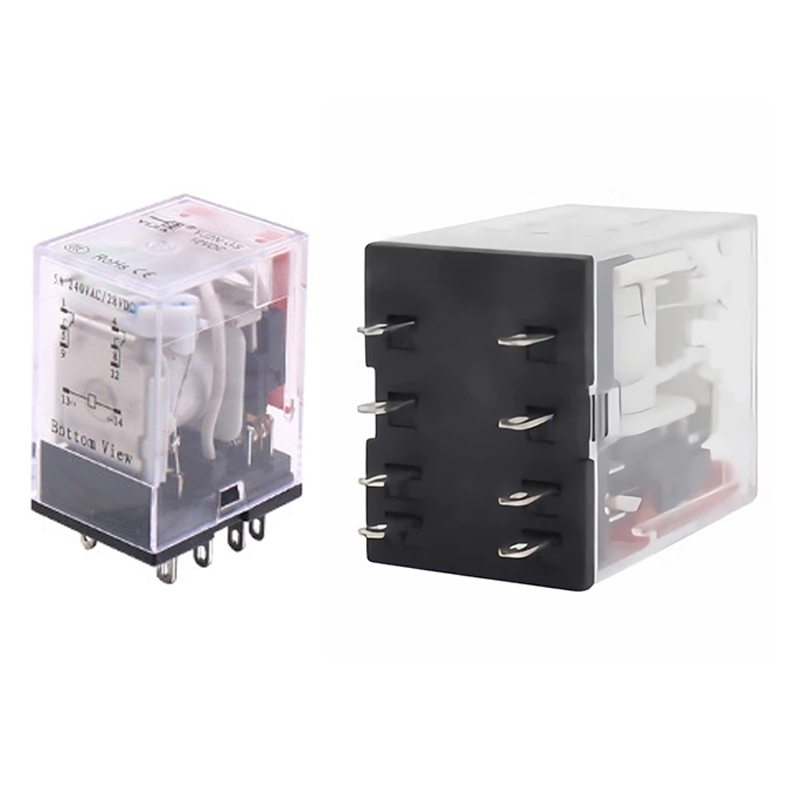

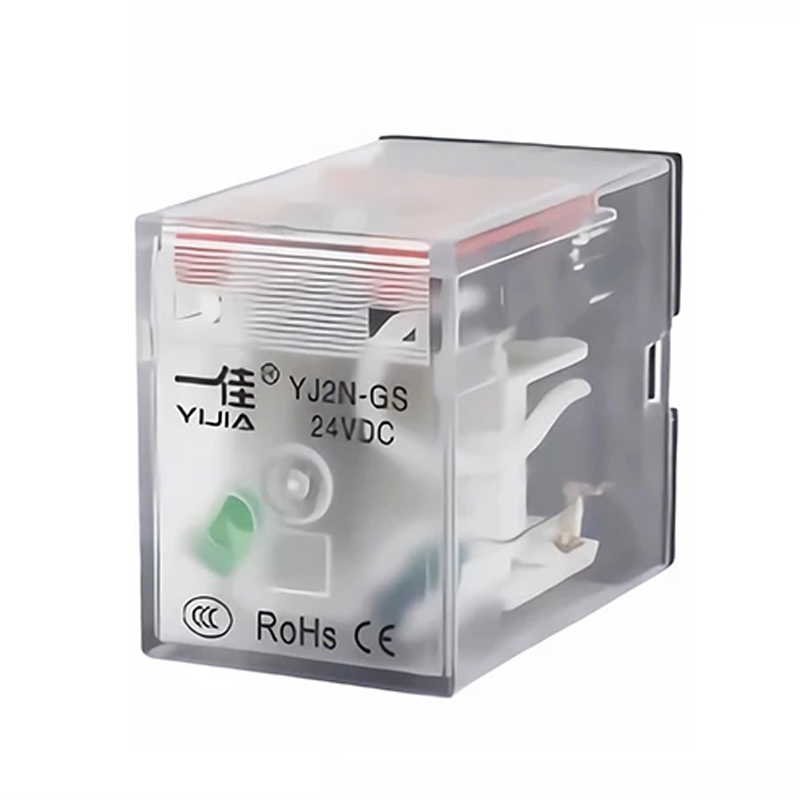

YIJIA YJ2N-GS 8-Pin 2 Way Small Electromagnetic Relay

Product Description

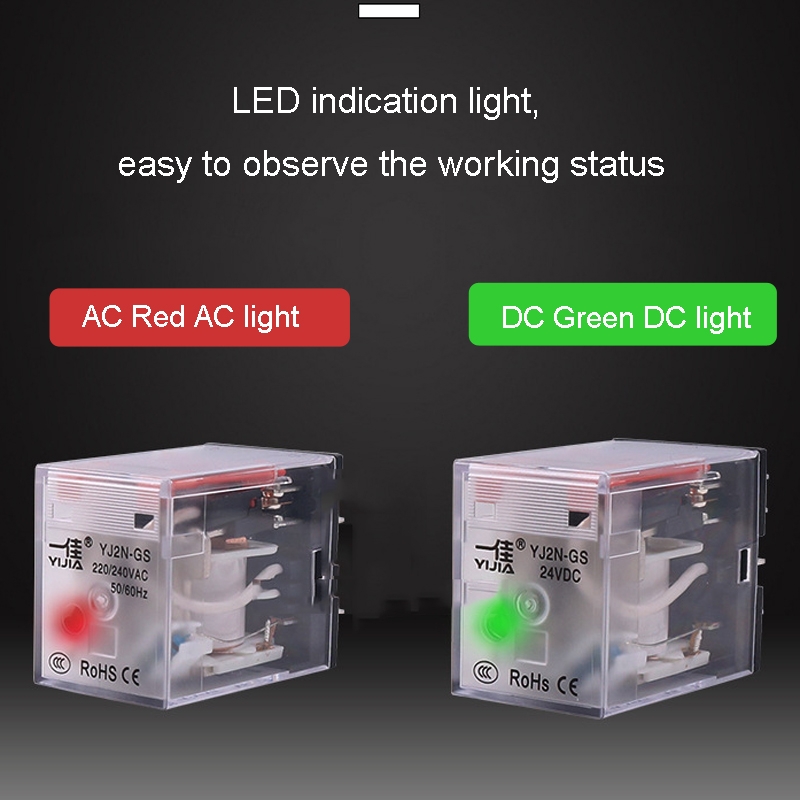

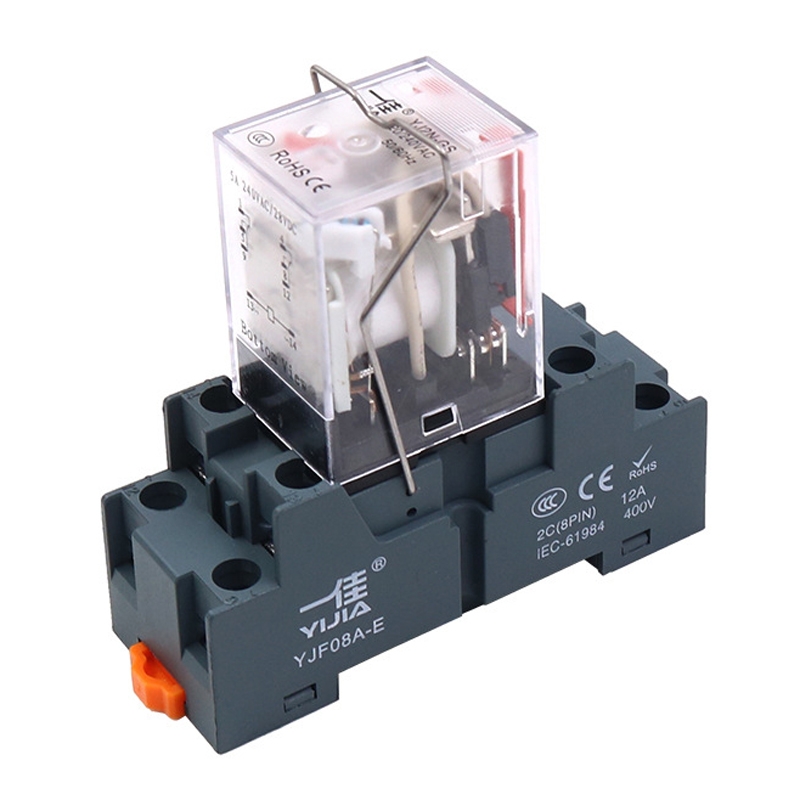

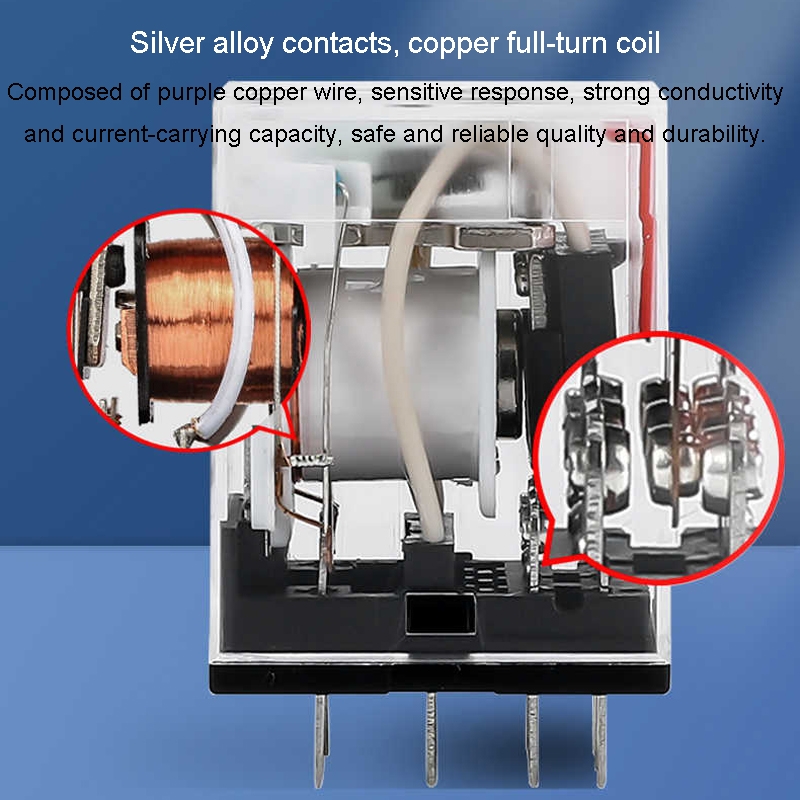

1. Shell material: plastic 2. Contact material: silver alloy 3. Contact form: 2 open and 2 closed 4. Pin number: small 8-pin 5. Rated voltage: 220V 6. Rated current: 5A 7. Coil voltage: 12VACVDC/24VACVDC/110VAC/220VAC 8. Silver alloy contact, full copper full-turn coil, composed of purple copper wire, sensitive response, strong conductivity and current carrying capacity, safe and reliable quality, durable 9. Removable shell, high temperature resistance, corrosion resistance, with LED indicator light, easy to observe the working status 10. Copper core coil, according to different power, the use of appropriate standard full-turn coil, to ensure reliable suction, can be used with the base YJF08A-E together 11. Weight: about 63 g 12. Size: main body about 3.5 x 2.68 x 2.05 cm, pin about 2.6 x 6 mm

Specifications

SKU

TBD06042723

Category

In Car › Replacement Parts › Relays

Weight

0.084 kg

Delivery

Standard delivery
