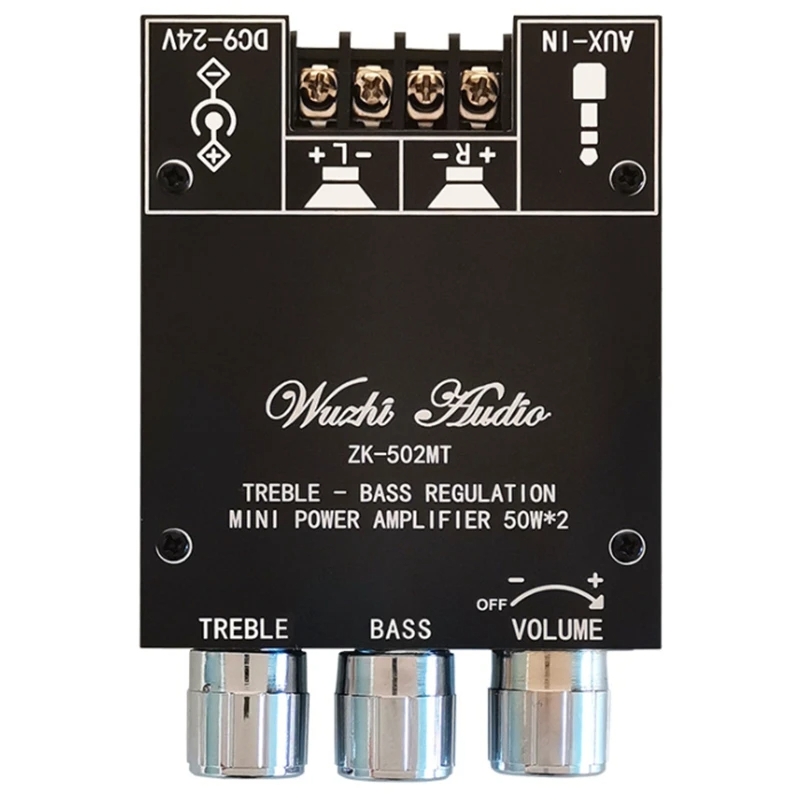

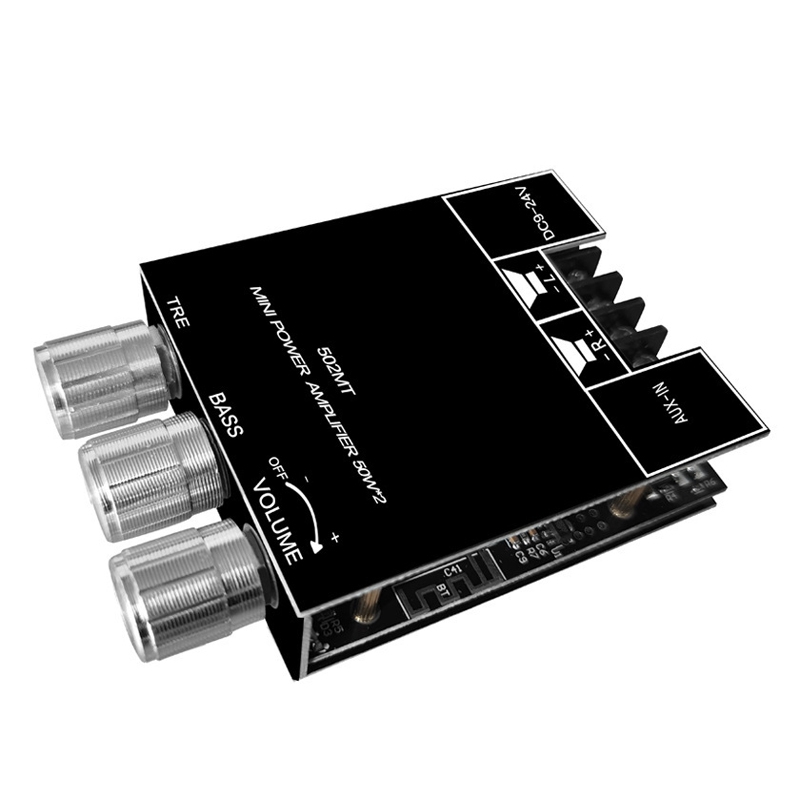

ZK-502MT 50W x 2 2.0 Stereo Bluetooth Audio Digital HIFI Power Pipe Module

Product Description

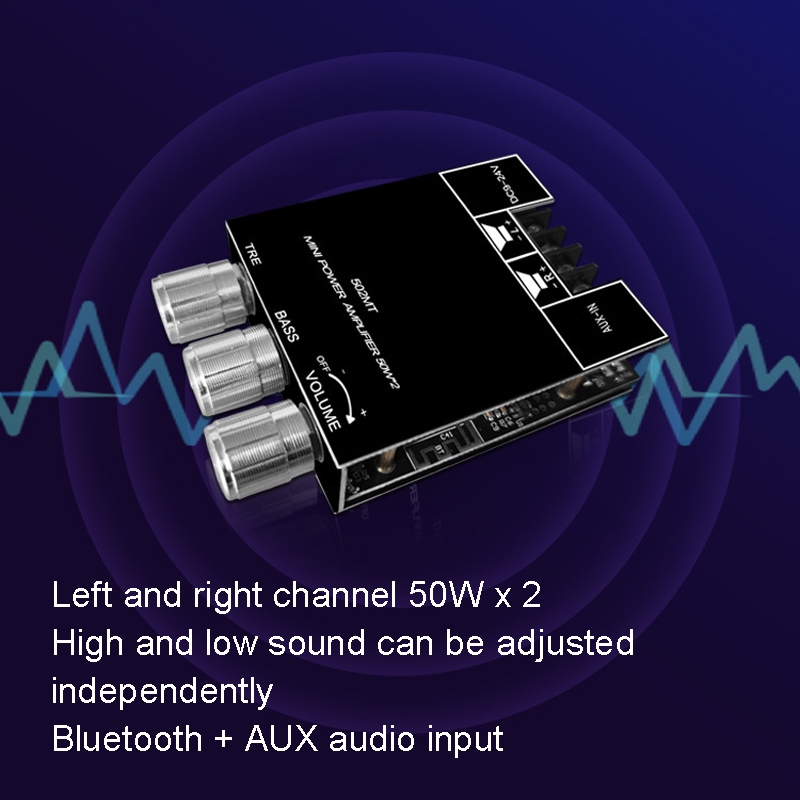

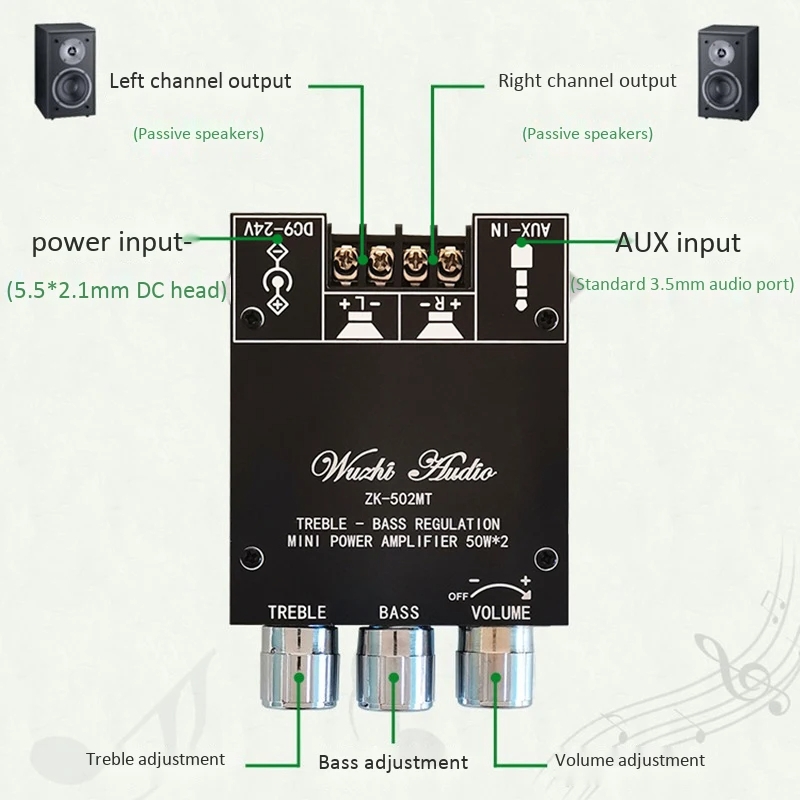

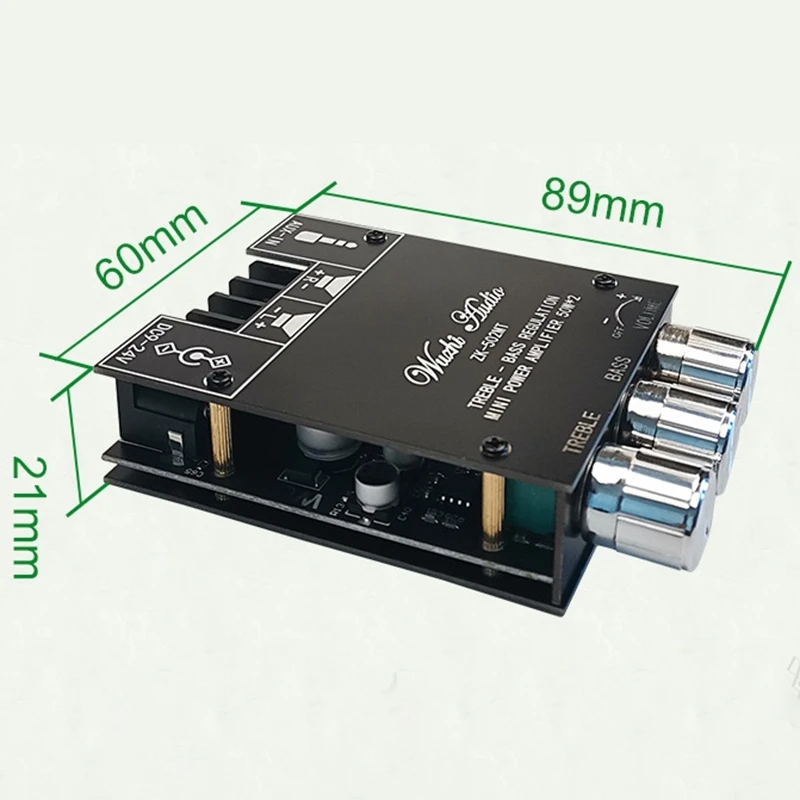

1. Bluetooth version: 5.0 (unobstructed, 15 meters) 2. Signal-to-noise ratio: greater than 90dB 3. Input mode: AUX+Bluetooth 4. Number of channels: left and right dual-channel (stereo) 5. Adaptable speaker: 15-100W, 4-8 ohms 6. Protection mechanism: overheat/overcurrent/short-circuit protection 7. Adaptable power supply: - 12V: 8 ohm/12W+12W, 4 ohm/20W+20W - 15V: 8 ohm/18W+18W, 4 ohm/30W+30W - 19V: 8 ohm/30W+30W, 4 ohm/30W+30W - 24V: 8 ohm/40W+40W, 4 ohm/50W+50W 8. Size: about 8.9 x 6 x 2.1cm 9. Weight: about 111g (including packaging) Tip: In the case of sufficient power supply voltage/current in the audio input will have enough output power, the higher the power supply voltage the higher the output power, the lower the impedance of the speaker the higher the output power, please make sure that the adapted power supply power is greater than the actual working power of the amplifier

Specifications

SKU

TBD06041322

Category

Consumer Electronics › DIY Parts & Components › Breadboard / Amplifier Board

Weight

0.135 kg

Delivery

Standard delivery
